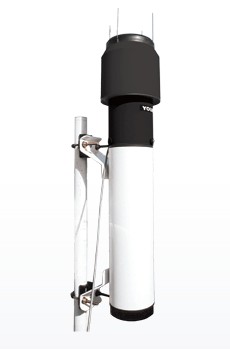

美國RMYOUNG電容式雨量計50202

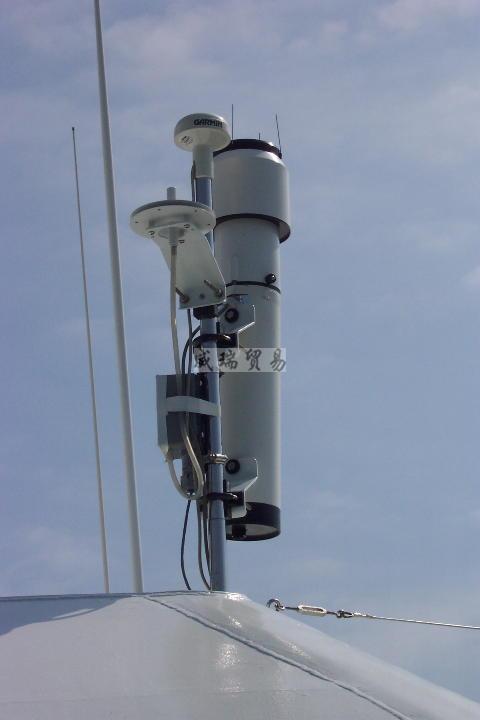

移動平臺雨雪量計，船舶雨雪量計，浮標雨雪量計

　　50202可以測量降雨或者降雪，傳感器沒有任何可移動部件。絕緣外殼以及恒溫控制加熱器使得傳感器可以在0℃以下的溫度環境中工作。跟傳統的翻斗式雨量桶以及稱重式雨雪量計不同，50202沒有任何可移動部件，對于在移動平臺如浮標和船只上測量降水，非常理想。降水的測量是通過一個電容式變送器，以及一個電子電路輸出測量電壓。然后通過數據采集器或者記錄器記錄測量數據。

技術性能參數

最小測量：1mm

精度：±

1mm

輸出信號：0 – 5VDC=0 – 50mm降水

內部積水溢出時間：大約30秒

供電：8 – 30VDC；加熱器，28VAC @ 48w

工作溫度范圍：-20 – 50℃

尺寸：

加熱器：高65厘米，直徑14厘米

積雨范圍直徑：

133毫米

積雨面積：200平方厘米

安裝：U型螺栓，垂直安裝在25 – 50mm直徑立管上

重量：2.5Kg

運輸重量：

4Kg

The Model 50202 Precipitation Gauge accurately measures rain or snow precipitation without moving parts. Insulated housings and thermostatically controlled heaters permit operation at temperatures below freezing. Unlike conventional tipping-bucket and weighing gauges the 50202 has no moving parts, making the instrument ideal for use on moving platforms such as buoys and ships. Precipitation measurement is made with a capacitive transducer and electronic circuit that produces a voltage output. Total precipitation can be tracked by a datalogger or recorder.

Specifications

Threshold: 1 mm (.04 in)

Accuracy: ± 1 mm (±.04 in)

Signal: 0 to 5.00 VDC = 0 to 50 mm precipitation

Chamber Drain Time: 30 seconds approx.

Power Requirement: Measuring Circuit: 8 to 30 VDC, Heater: 48 Watts @ 28 VAC, Operating Temperature: -20°C to +50°C (-4°F to 122°F)

Dimensions:

Height: 65 cm (25.6 in)

Diameter: 14 cm (5.5 in)

Catchment Dia: 133 mm (4.4 in)

Catchment Area: 100 cm² (60.8 in²)

Mounting: U-bolts fit vertical pipe 25-50 mm (1-2 in) diameter.

Weight: 2.5 Kg (5.5 lb)

Shipping Weight: 4 Kg (9 lb)
