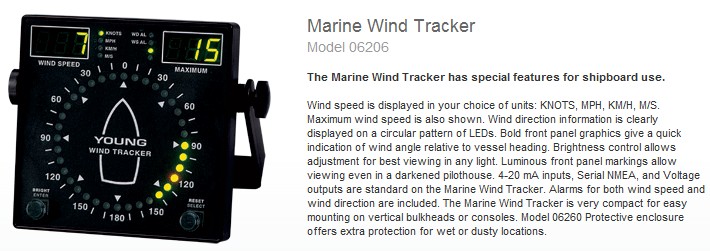

Wind speed is displayed in your choice of units: KNOTS, MPH, KM/H, M/S. Maximum wind speed is also shown. Wind direction information is clearly displayed on a circular pattern of LEDs. Bold front panel graphics give a quick indication of wind angle relative to vessel heading. Brightness control allows adjustment for best viewing in any light. Luminous front panel markings allow viewing even in a darkened pilothouse. 4-20 mA inputs, Serial NMEA, and Voltage outputs are standard on the Marine Wind Tracker. Alarms for both wind speed and wind direction are included. The Marine Wind Tracker is very compact for easy mounting on vertical bulkheads or consoles. Model 06260 Protective enclosure offers extra protection for wet or dusty locations.
Specifications Wind Speed Range: 0-100 MPH 0-50 M/S 0-200 KM/H 0-100 KNOTS Wind Direction Range: 0-180 degrees (port & starboard) Voltage Outputs: 0-5 VDC Full Scale for WS & WD NMEA Inputs/Outputs: Standard Alarm Relays: Normally Open contacts for WS & WD Remote Displays: 16 maximum Power Requirement: 12-30 VDC, 4.5 W Dimensions: 144 mm (5.65 in) x 144 mm (5.65 in) x 36 mm (1.4 in) Weight: 1 lb (0.45 kg) Shipping Weight: 3 lb (1.4 kg)
?
型號
詳細
傳感器纜線
05103
風向標,風速傳感器
18446
05103V
風向標,風速傳感器,0-5 VDC輸出
18446
05103L
風向標,風速傳感器,4-20mA輸出
18723
05106
風向標,風速傳感器-MA（海洋型）
18721
05305
風監測儀–AQ
18446
05305V
風監測儀–AQ電壓輸出
18446
05305L
風監測儀–AQ4-20 mA 輸出
18723
05501LM
風力監測器-IS（本質安全)
18723
05603C
風傳感器接口（用于 05106）0-5 VDC
18446
05631C
風線驅動器(用于05106)
18723
05103-45
風監測儀–高山型
18446
06201
風跟蹤器–風速/風向顯示（110 V / 60 HZ）
06201H
風跟蹤器–風速/風向顯示（230 V / 50-60 HZ）
06206
風跟蹤器（海用）–風速/風向顯示（110 V / 60 HZ 適配器）
06206H
風跟蹤器（海用）–風速/風向顯示（230 V / 50-60 HZ 適配器）
