The Wind Line Driver converts signals from the wind sensor to 4 to 20 mA current loop values. Specifications Power Requirement: 12-30 VDC Temperature Range: -50 to 50°C (-58 to 122°F) Inputs: YOUNG Wind Monitor Outputs: 4 to 20 mA
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360° Accuracy: ± 1% FS over temperature and supply voltage range. Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D) Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia

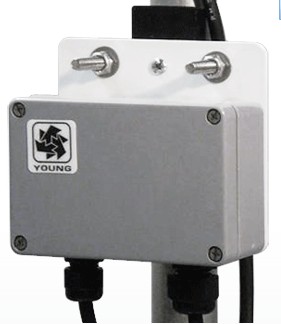

MODEL 05603C - WIND SENSOR INTERFACE
0-5 VDC OUTPUTS
The Wind Sensor Interface provides calibrated analog DC voltage signals for wind speed and wind direction. Specifications Power Requirement: 8-24 VDC (5 mA @ 12 VDC) Temperature Range: -50 to 50°C (-58 to 122°F) Inputs: YOUNG Wind Monitor Outputs: 0 to 5.00 VDC
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360° Accuracy: ± 1% FS over temperature and supply voltage range. Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D) Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia
