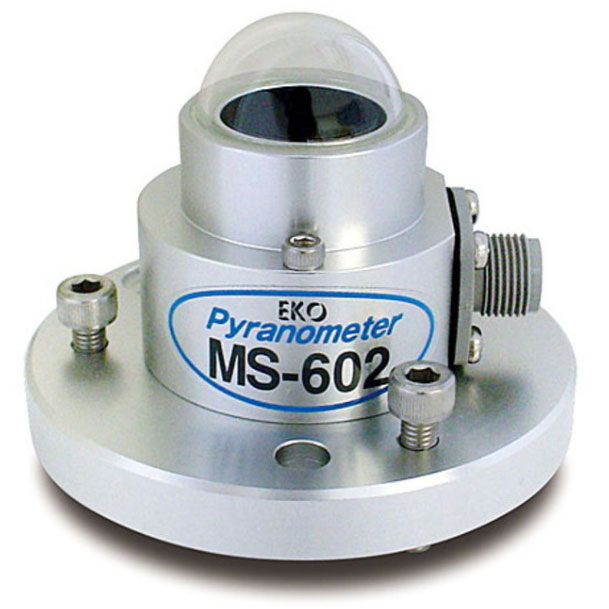

EKO MS-602 Pyranometer / 全光譜輻照計
EKO MS-602 Pyranometer / 全光譜輻照計
EKO MS-602 Pyranometer / 全光譜輻照計
EKO MS-602 Pyranometer / 全光譜輻照計
輻照計MS-802/402/602用于測量大氣中接受到的太陽照射能量。傳感器采用對全波段都有平整光譜響應的溫差熱電堆。當日照輻射被傳感器的黑體表面吸收，由于冷/熱連接點的溫差導致熱-電效應，熱電堆產生電信號。輻照強度由熱電堆傳感器輸出電壓而得到，主機部分輸出為電壓信號，可轉換電流信號，搭配使用電壓計，數據采集器可實現實時讀數，系統集成等功能。
| Specifications (Typical) | MS-602 | |
| ISO 9060 classification | Second Class | |
| Response time 95% (sec) | 17 | |
| Zero offset - Thermal radiation (200W/m2) | + 10 W/m2 | |
| Zero offset - Temperature change (5K/hr) | < 6 W/m2 | |
| Non-stability (change/year) | < 1.7 % | |
| Non-linearity (at 1000W/m2) | < 1.5 % | |
| Directional response (at 1000W/m2) | < 25 W/m2 | |
| Spectral selectivity (0.35-1.5μm) | < 1 % | |
| Temp. response (for 50°C band) | < 2 % | |
| Tilt response (at 1000W/m2) | < 2 % | |
| Sensitivity (μV/W.m-2) | Approx. 7 | |
| Impedance (Ω) | 20 - 140 | |
| Operating temperature range (℃) | - 40 to +80 | |
| Irradiance range (W/m2) | 0 - 2000 | |
| Cable length | 10m | |
| Wavelength range | 285 to 3000 nm | |
| Ingress protection | IP 67 | |
